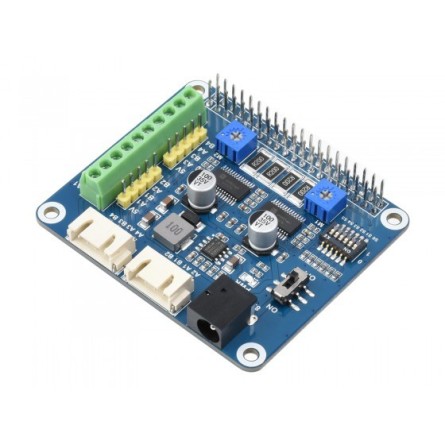

Stepper motor HAT for Raspberry Pi

€16.96
(Price Tax included)
Out-of-Stock
  • HAT engine compatible Raspberry Pi, Jetson Nano
  • Embeds x40 PIN GPIO
  • 6 microstep modes available, configured with DIP switches: full step, half step, 1/4 step, 1/8 step, 1/16 step and 1/32 step
  • Ideal for 3D printer projects, sculpting machine, mechanical arm...
Click here to get emailed once we have stock again
X

Get emailed when we have stock again..
Select your combination form the ones in this list.


Enter your email to receive a notification when it becames available

Create the alert to receive an email once we have stock back.

Reference :

WV22311

Poser une question sur ce produit

Contents

  • HAT stepper motor
  • RPi screw set (2pcs)
  • Aluminum heat sink


Features

  • MP1482 power chip: external power supply can be converted to 5V voltage to power the stepper motor Raspberry Pi
  • HR8825 motor driver chip: to drive x2 stepper motors
  • Adjustable motor current via potentiometer
  • Overcurrent protection (OCP), thermal shutdown (TSD), VM undervoltage lockout (UVLO)
  • DIP switch
  • Current: 2.5A/3.3V
  • Mounting hole size: 3mm
  • Dimensions: 65 x 56 mm


WV22311

Data sheet

Category
Motors & Servo
Brand
Waveshare
Compatibility
Raspberry Pi*~Jetson Nano
Type of product
Robotics
